Our Products

We Excel In Manufacturing High Precision Automobile, Engineering And Industrial Ancillaries

U Bolts

High Tensile U Bolts

Grade 5.6, 6.8, 8.8, 9.8, 10.9, 12.9 Thread Size (mm) : M8 X 1 to M28 X 3 Length of the Bolt : 40 mm to 700 mm

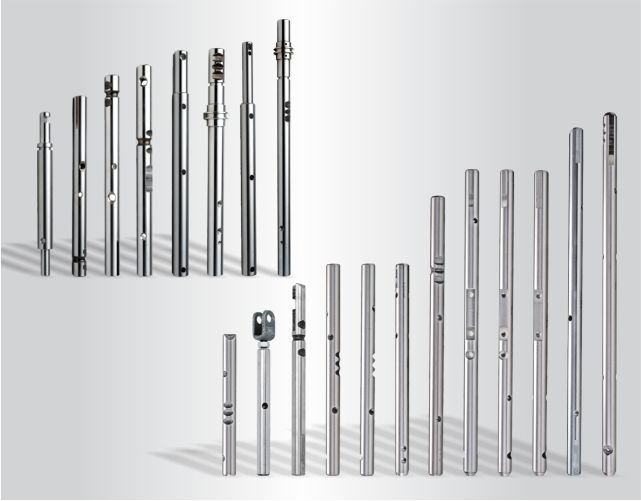

Rails

Rails (Shifter & Transmission)

It’s a very critical component used in vehicles for Gear Shifting mechanism. The dimension maintained are in microns and the surface is protected from wearing out by localized Induction hardening.

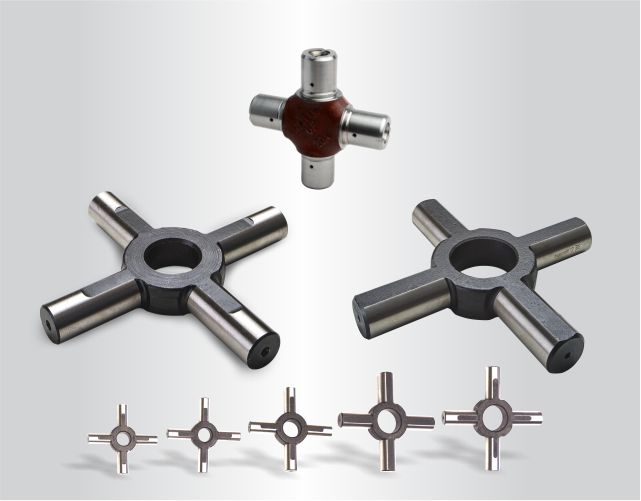

Spiders

Spiders (Cross)

Grade 5.6, 6.8, 8.8, 9.8, 10.9, 12.9 Thread Size (mm) : M8 X 1 to M28 X 3 Length of the Bolt : 40 mm to 700 mm

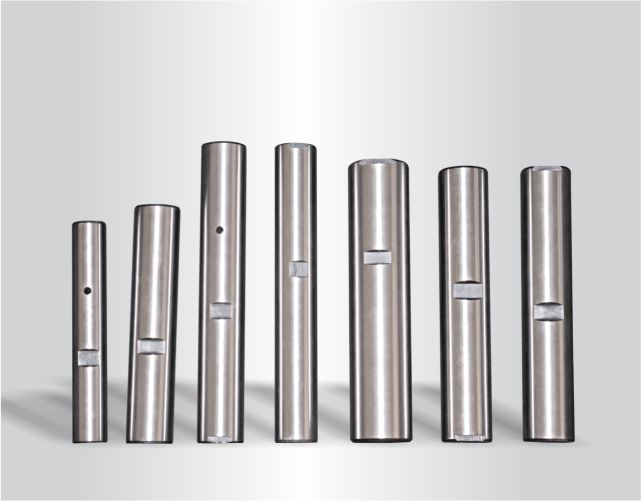

King Pins

King Pins

It’s a very critical component used in vehicles for Gear Shifting mechanism. The dimension maintained are in microns and the surface is protected from wearing out by localized Induction hardening.

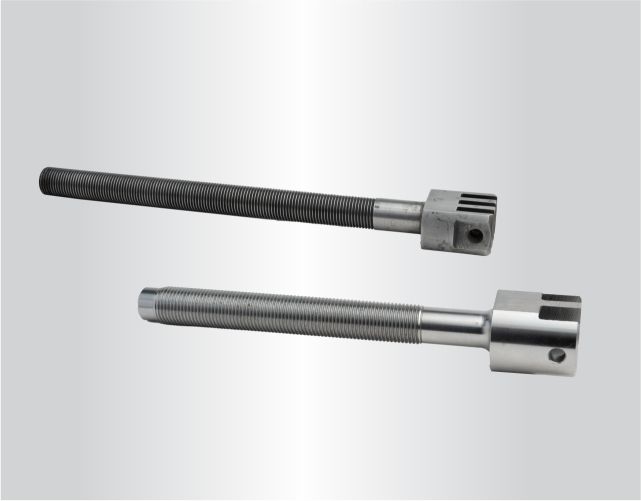

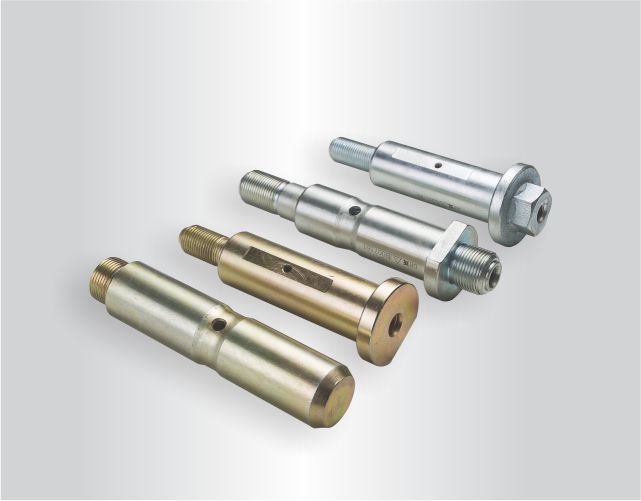

Suspension Shackle Pins

Suspension Shackle Pins

Part of the Suspension Assembly. The components is either made form Round bars or forgings. The process involved is through hardening and Induction Hardening after the machining process.

Cotter Pins

Cotter Pins

Fasteners, threaded on both sides to connect the components in vehicles . Available in all Grades and Diameter size range from 10 mm to 24 mm.

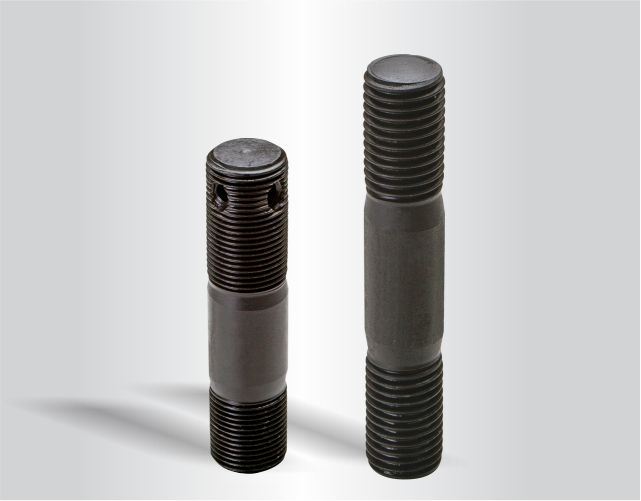

Studs

Studs

A component used to lock King Pin in the knuckle of the vehicle.

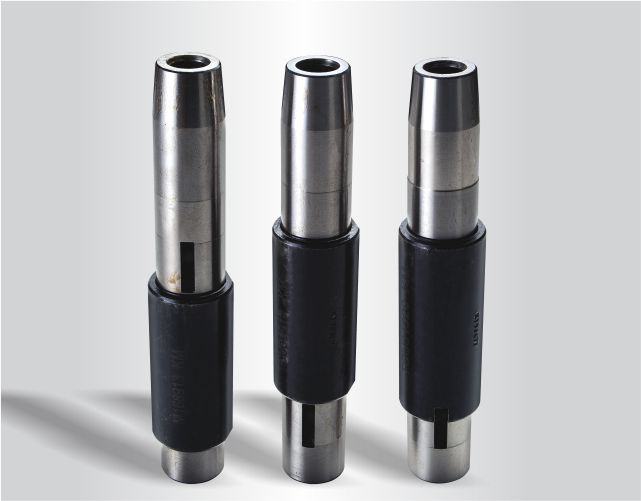

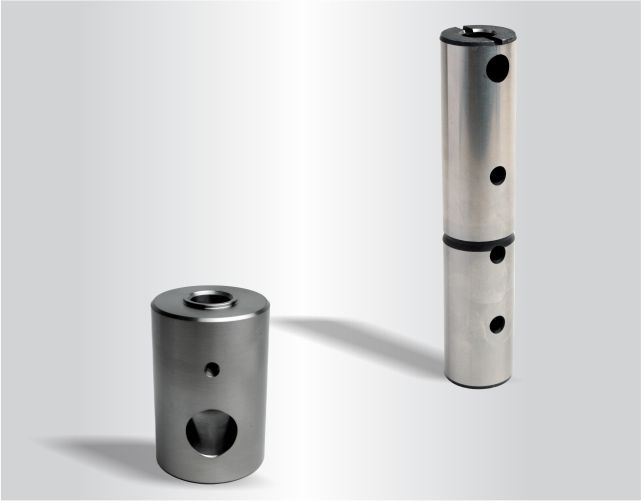

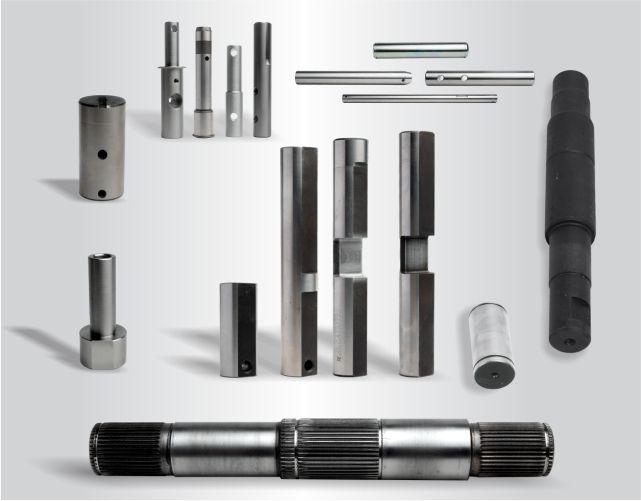

Shaft Components

Shaft Components

We manufacture all types of Round bars shaft components as shown in the Pictures, involving all processes like turning, drilling, ID keyway, woodruff key, Heat treatment, grinding etc.

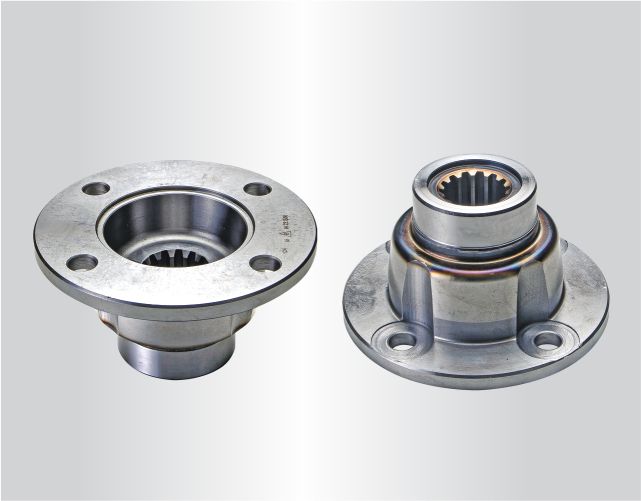

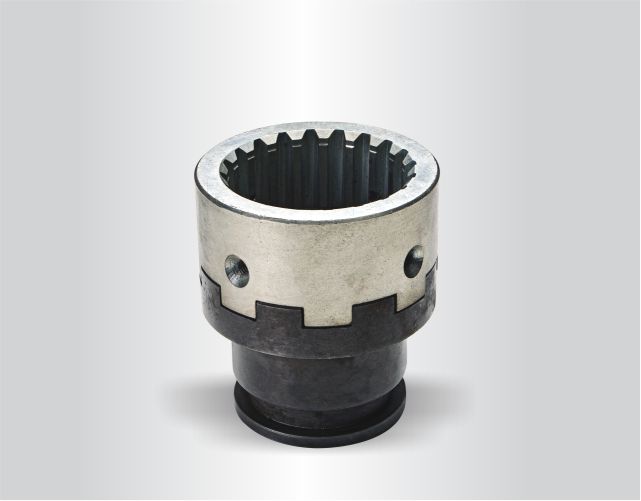

Joint Propeller Shaft & Companion Flanges

Joint Propeller Shaft & Companion Flanges

Forged components machined, induction hardened, broached, Surfaced Splined etc used at the ends of the Propeller Shafts.

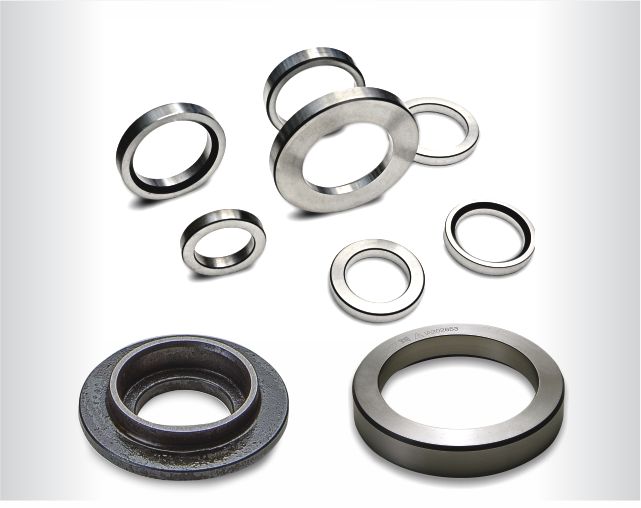

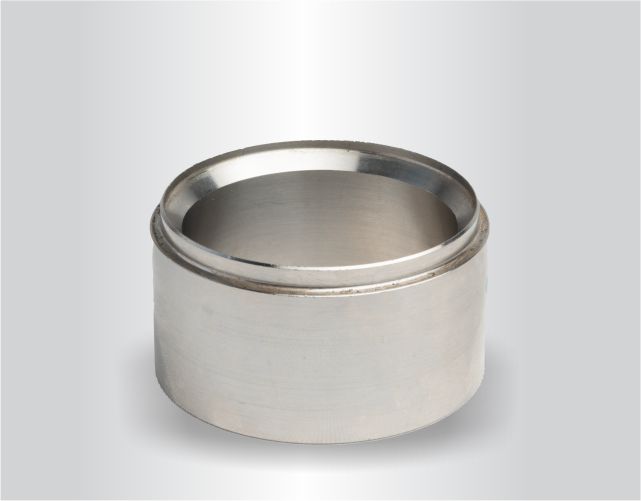

Spacers

Spacers

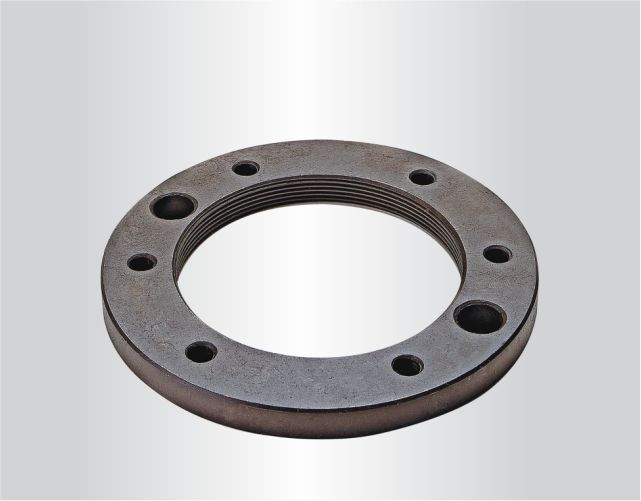

We make spacers from forgings and round bars. It includes components like spacer seals, collar pinions, lock nuts, bushes etc. Both through hardened and Case carburized depending upon the application.

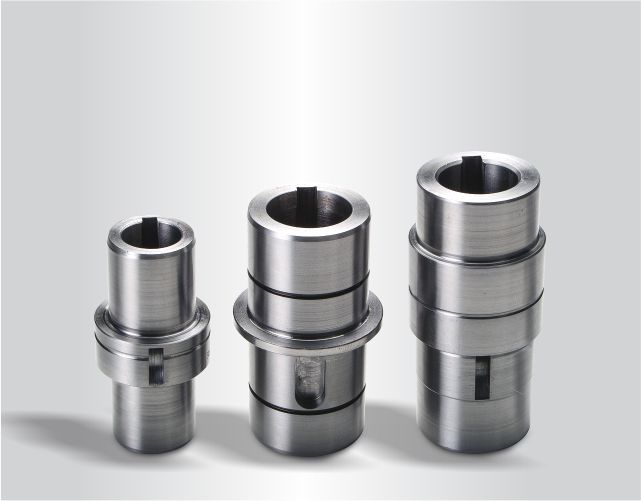

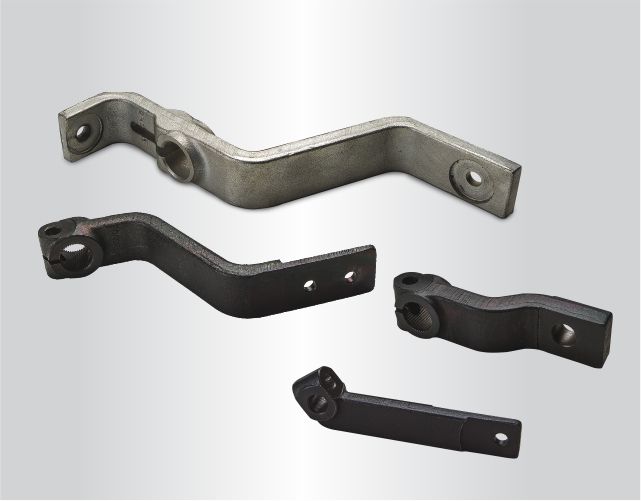

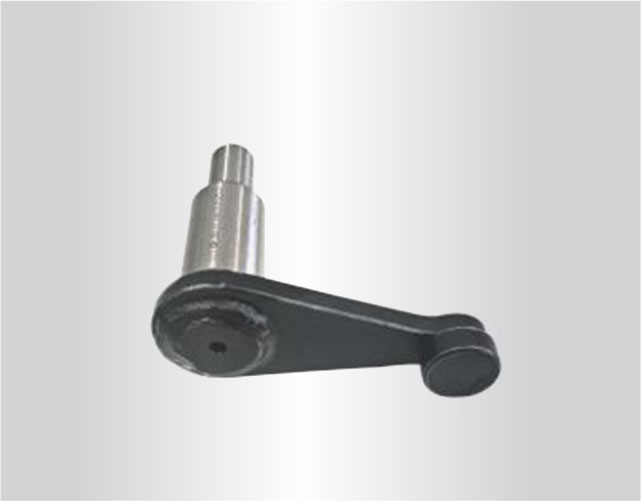

Levers & Shift Finger

Levers & Shift Finger

Forged components machined and broached used for various applications in vehicle.

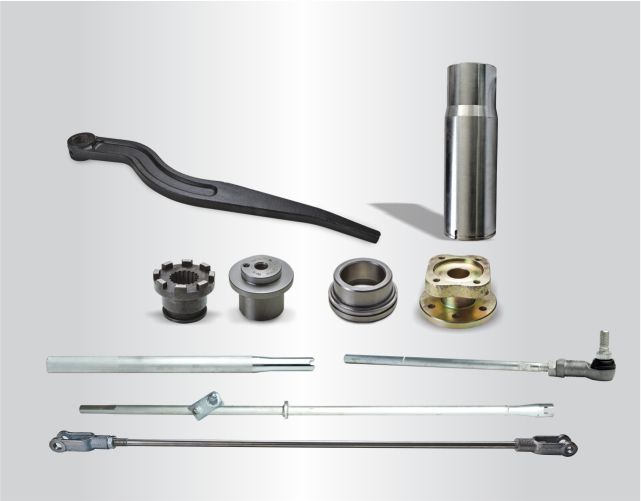

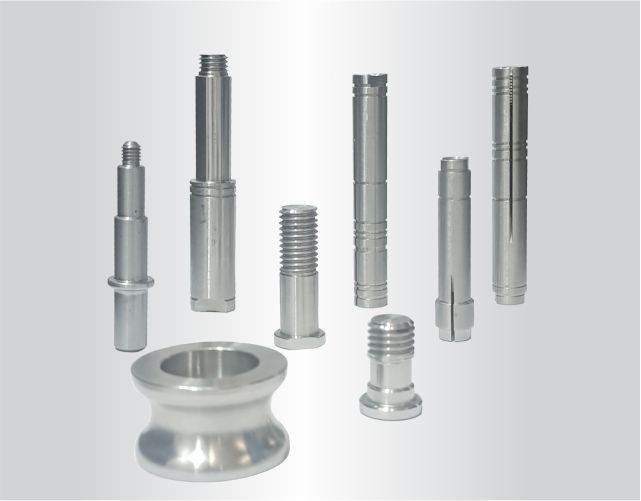

Machined Forgings and Miscellaneous Components

Machined Forgings and Miscellaneous Components

We make lots of machined components from forgings like forks, hooks, thrust plate, toe hooks , brackets, pulleys, breeze nozzle, Bolster wear plate, torsion arm etc.We also make components lit Pivot Pin ( Trunion Pin) used in Boggie Suspension, sleeve injectors ( engine), Detent pin etc.

Assemblies

Assemblies (Including welding)

As seen from the photos, we do lot of small assemblies, which include process like welding, press fitting, reverting and manual assemblies. Some of the parts to mention are Stabilizer bar assembly for the cabin, Gear Shift lever, Select levers etc.

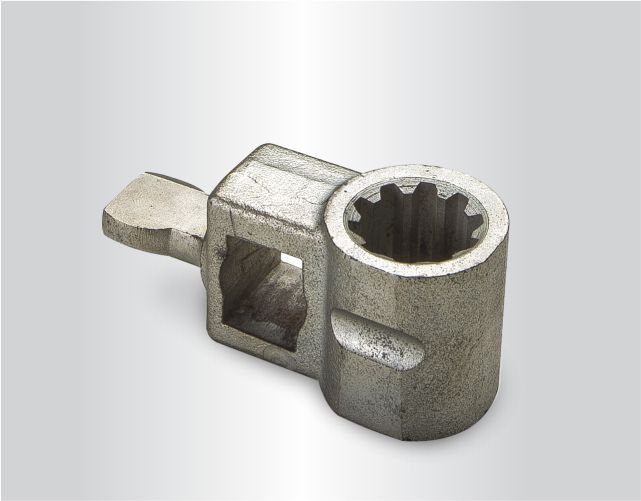

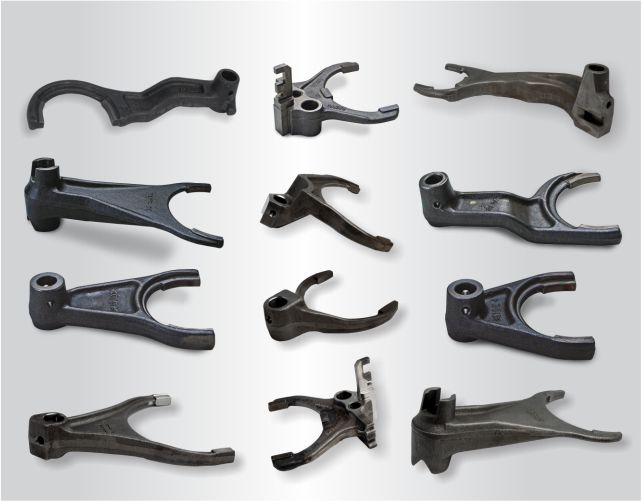

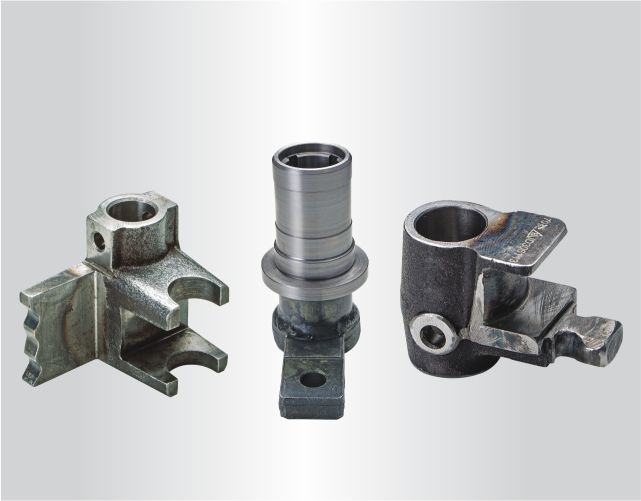

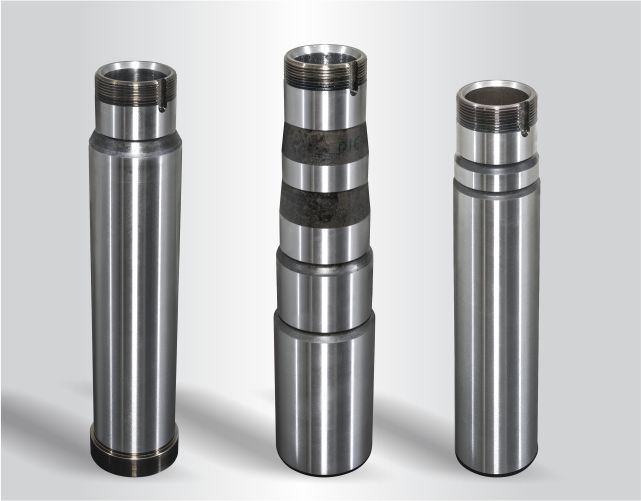

Shifter Forks & JAWS Spindle

Shifter Forks & JAWS Spindle

Forging and Assembly

Forging and Assembly

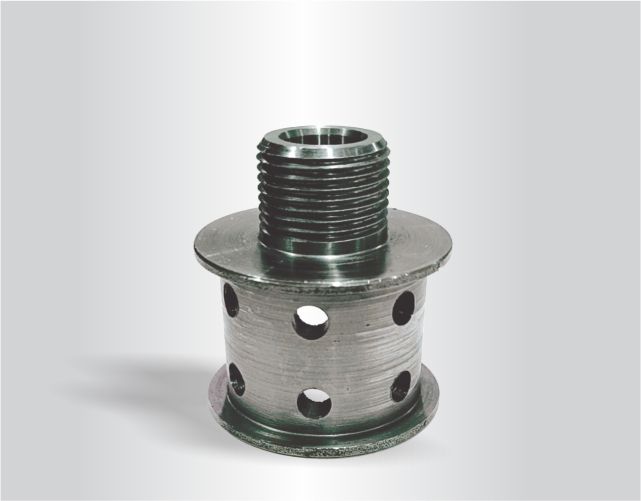

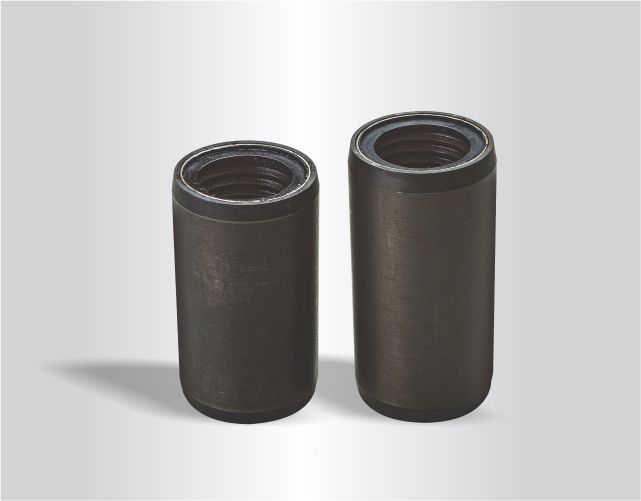

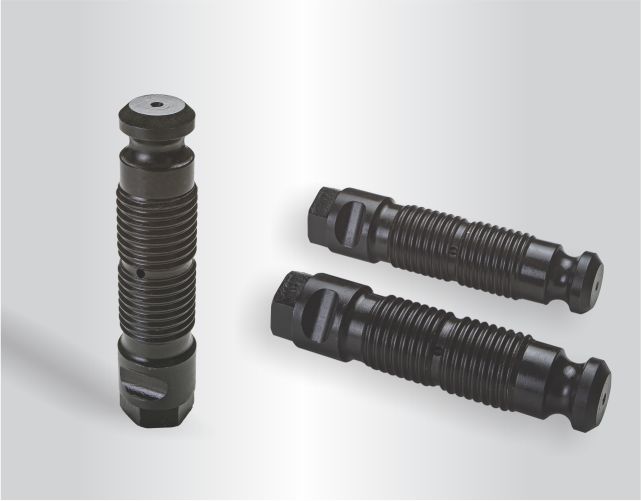

Threaded Bush & Threaded Shackle Pins

Threaded Bush & Threaded Shackle Pins
